IKAT Designing & Weaving: Tradition Meets Digital Innovation

Introduction to IKAT

IKAT Weaving

IKAT is one of the most fascinating textile art forms in the world. The term “Ikat” originates from the Malay-Indonesian word mangikat, meaning “to bind” or “to knot.” It is a unique resist-dyeing technique where yarns are tied and dyed before weaving, resulting in beautifully blurred and artistic patterns on fabric.

Unlike conventional printing or dyeing methods, IKAT designs are created directly on the yarns before they enter the loom. This pre-dyed arrangement of warp and/or weft yarns creates the characteristic soft-edged motifs and hazy aesthetics that make IKAT textiles instantly recognizable.

The art of IKAT requires:

• Precision in yarn tying

• Careful dyeing

• Accurate yarn alignment

• Skilled weaving craftsmanship

The resist portions are protected from dyes using thread bindings or rubber strips, creating multi-colored textile surfaces after weaving.

Traditional IKAT Manufacturing Process

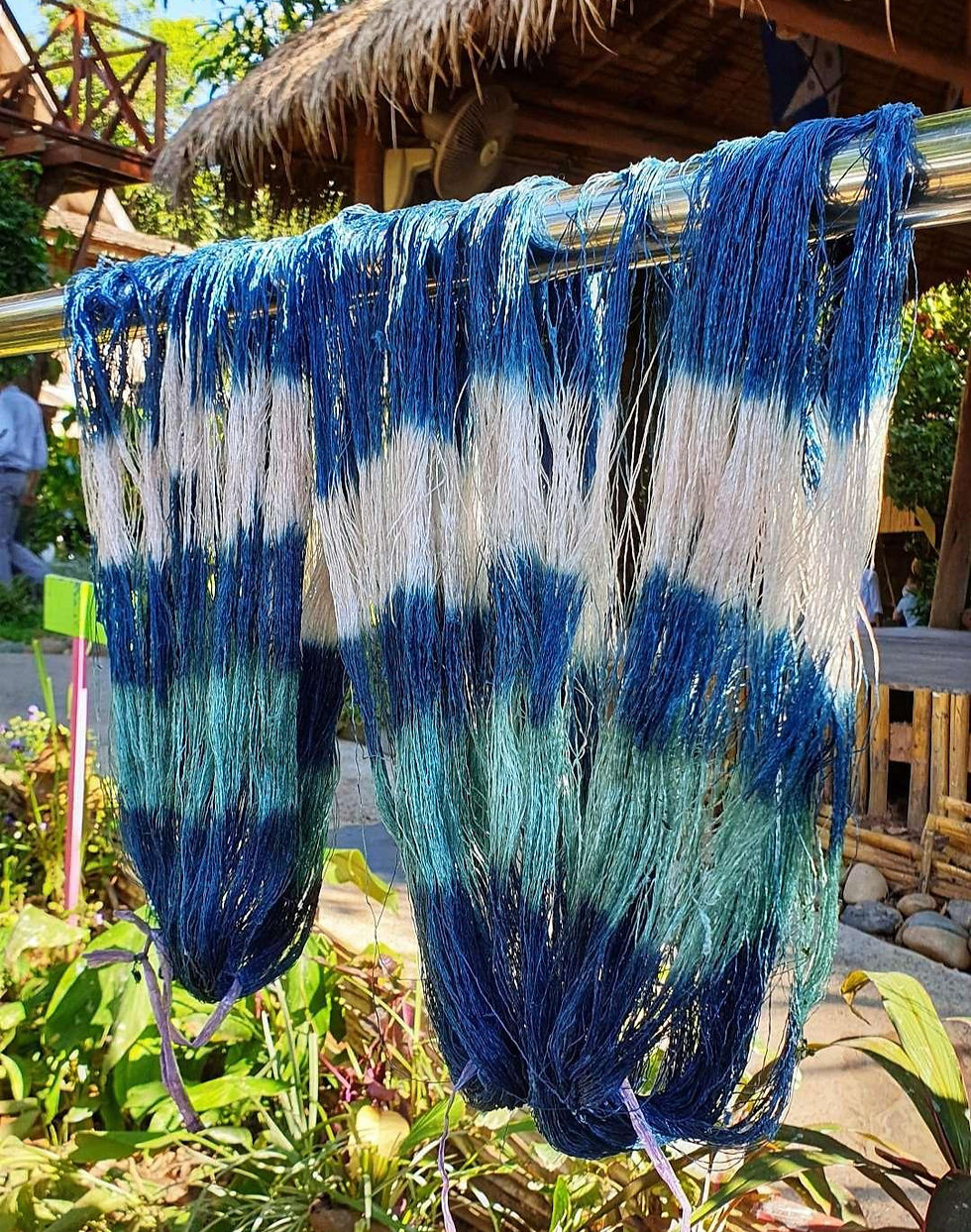

Dyed Yarn for IKAT Weaving

The traditional IKAT manufacturing process involves multiple highly skilled stages:

Step-by-Step Process

1. Warp threads are stretched on a frame

2. Design outlines are marked

3. Yarn sections are tied to resist dye penetration

4. Yarns are dyed in selected colors

5. Bindings are removed and re-tied for additional colors

6. Dyed yarns are carefully arranged on the loom

7. The final fabric is woven

This method demands exceptional precision because even slight yarn misalignment can disturb the final pattern formation.

Types of IKAT

1. Warp IKAT

Warp Ikat

In Warp IKAT:

• Warp yarns are tie-dyed

• Weft yarns remain plain

• Designs appear along the warp direction

This technique is comparatively easier than double IKAT but still requires highly accurate yarn placement.

2. Weft IKAT

In Weft IKAT:

• Weft yarns are resist-dyed

• Warp yarns remain plain

• The design emerges during weaving through careful weft insertion

Weft IKAT often produces softer and more fluid visual effects.

Weft Ikat

3. Double IKAT

Double IKAT is the most complex form:

• Both warp and weft yarns are tie-dyed

• Precise alignment creates intricate patterns

• Extremely labor-intensive and expensive

India’s famous Patola textiles from Gujarat are renowned examples of double IKAT craftsmanship.

Double Ikat

Major IKAT Traditions in India

Gujarat IKAT – Patola

Patan Patola of Gujarat

Gujarat IKAT is famous for:

• Double IKAT weaving

• Geometric layouts

• Stepped motif outlines

• Limited but rich color palettes

Common motifs include:

• Naari Kunjara

• Chokada

• Moon motifs

• Floral geometric structures

Patola sarees are among the most luxurious handmade textiles in India.

Odisha IKAT – Sambalpuri & Bandha

Sambalpuri Ikat design Bandha Work

Odisha IKAT is recognized for:

• Fine layouts

• Curved motifs

• Harmonious color combinations

• Figurative representations

Popular motifs include:

• Fish

• Lotus

• Peacock

• Chakra

• Elephant

• Swan

Odisha IKAT is deeply connected with tribal aesthetics and cultural symbolism.

Andhra Pradesh IKAT – Pochampally & Telia Rumal

Telia Rumal

Andhra Pradesh IKAT is characterized by:

• Geometric structures

• Vibrant colors

• Mechanized support in pre-weaving

• Better production efficiency

Products include:

• Sarees

• Furnishing fabrics

• Mats

• Dress materials

• Rumals

Pochampally IKAT has gained international recognition for its bold geometric visual appeal.

Challenges in Traditional IKAT Designing

Traditional IKAT design development involves manual graph paper drafting. This process has several limitations:

• Time-consuming motif creation

• Limited editing flexibility

• Complex repeat calculations

• Difficulty in layout visualization

• Sampling wastage

• High labor dependency

The blurred visual effect of IKAT is especially difficult to predict accurately during manual design creation.

Digital Transformation of IKAT with Computer Aided Textile Designing (CATD)

IKAT Visuals In CATD

Digital technologies are revolutionizing traditional textile crafts. CATD introduces advanced IKAT visualization and simulation capabilities to modernize the design process.

Major CAD Deliverables

1. Digital Motif Development

• Grid/graph-based motif creation

• Easy editing functionalities

• Scalable pattern systems

2. Custom Graph Structures

• Flexible graph management

• Independent of yarn density constraints

3. IKAT Blur Simulation

• Controlled offset-based blur generation

• Realistic dye penetration simulation

4. Garment Layout Development

• Saree layouts

• Dupatta visualization

• Border & pallu arrangements

5. Fabric Mapping on Mannequins

• Realistic garment visualization

• Pre-production simulation

Understanding the Digital IKAT Effect

The core of digital IKAT simulation lies in creating realistic dye-bleeding effects.

Offset-Based Visualization

The software simulates:

• Vertical offset for Warp IKAT

• Horizontal offset for Weft IKAT

• Controlled blur intensities

• Randomized dye penetration

Increasing offset values creates stronger blurred aesthetics similar to real handcrafted IKAT textiles.

IKAT CAD Workflow in CATD

Step 1: Graph-Based Design Creation

Designs are created on a grid structure with density parameters for accurate textile simulation.

Step 2: Warp IKAT Offset Definition

Vertical offsets simulate dye penetration in warp yarns.

Different offset levels produce varying degrees of blur and softness.

Step 3: Weft IKAT Offset Definition

Horizontal offsets simulate dye diffusion in weft yarns.This creates realistic handcrafted IKAT aesthetics digitally.

Step 4: Fabric Generation & Weave Assignment

The software assigns weave structures and generates complete fabric simulations for:

• Warp IKAT

• Weft IKAT

• Composite structures

Yarn Mapping & Density Calculations

Advanced Digital Parameters

The software also supports:

• Yarn grouping

• Tying calculations

• EPI & PPI customization

• Ribbon/Bhaag simulation

• Density visualization

This significantly improves:

• Production planning

• Visualization accuracy

• Sampling efficiency

Advantages of Digital IKAT Simulation

Key Benefits

Faster Design Development

Eliminates repetitive manual graph work.

Reduced Sampling Cost

Visualize designs before physical production.

Better Color Planning

Accurate digital previews reduce dyeing errors.

Enhanced Productivity

Multiple variations can be created rapidly.

Sustainable Development

Reduces material wastage and labor-intensive trial production.

Traditional Craft Preservation

Digital systems help preserve heritage weaving knowledge for future generations.

Future of IKAT & Digital Textile Innovation

The integration of traditional handloom crafts with digital textile technologies is creating new possibilities for:

• Designers

• Weavers

• Textile exporters

• Researchers

• Fashion brands

Advanced CAD tools can help bridge the gap between:

• Heritage craftsmanship

• Modern textile manufacturing

• Digital visualisation

• Sustainable production

As textile industries increasingly adopt AI, CAD, and virtual simulation technologies, IKAT weaving stands at the intersection of tradition and innovation.

Conclusion

IKAT is more than a textile technique — it is a living heritage of craftsmanship, mathematics, color planning, and artistic expression.

From the luxurious Patola silks of Gujarat to the vibrant Pochampally textiles of Andhra Pradesh and the culturally rich Bandha fabrics of Odisha, IKAT continues to inspire designers worldwide.

Digital tools now provide powerful solutions for:

• IKAT motif development

• Blur simulation

• Fabric visualization

• Yarn mapping

• Garment layout planning

The future of IKAT lies in combining traditional wisdom with digital creativity to create sustainable, scalable, and globally competitive textile innovations.
